NextSPOT 600
Phased Array Ultrasonic Spotweld Detector
Windows Version
NextSPOT Series
Introduction

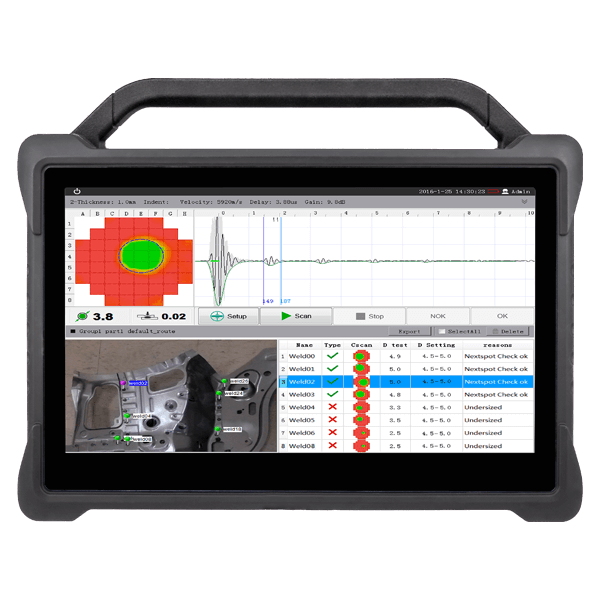

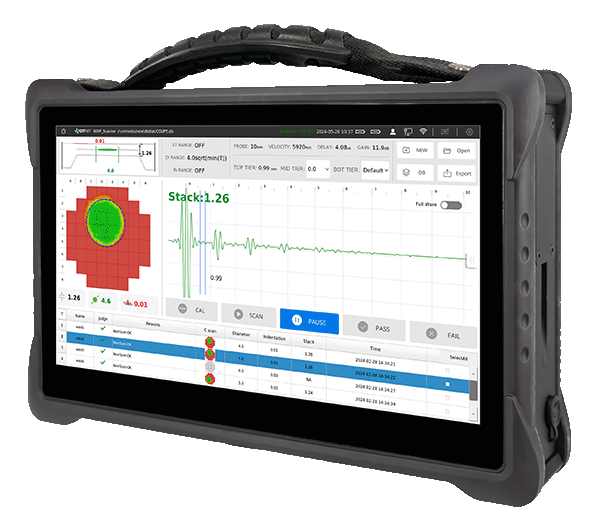

NextSPOT 600 ultrasonic flaw detector will handle all your spots weld NDT needs, whether it is in production lines or in field environments. The unit is constructed with a one-piece all-aluminum housing that is both rugged and lightweight, with a weather-protected rubber coating on the outside. Using patented technologies backed by years of R&D in the NDT industry, NextSPOT 600 can produce real-time imaging with auto-detection on spot weld flaws both quickly and accurately.
In today’s ever increasing competitiveness in the automotive manufacturing segment, NextSPOT 600 with its easy-to-use and its powerful feature interface can save valuable time and increase productivity.
Key Features

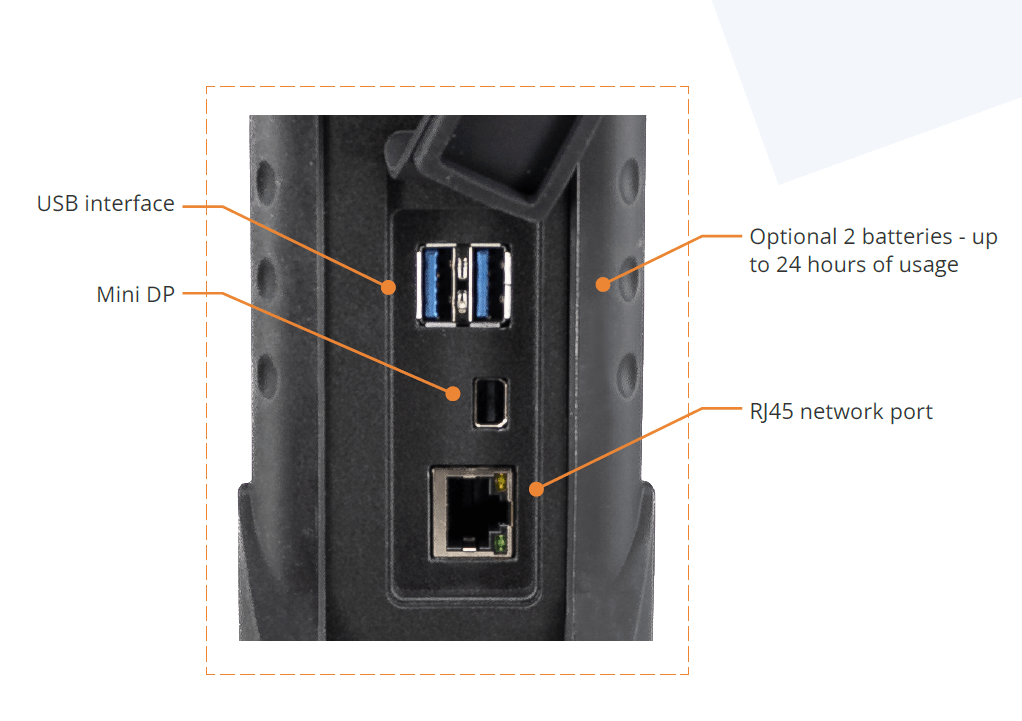

Rugged and Portable - All Aluminum Alloy
NextSPOT 600 is constructed with an all aluminum alloy shell with 360° shielding. It adopts a one-piece aluminum alloy with rubber coating that makes it rugged, lightweight, and compact. The unit is also weather protected and stress tested so that It can operate from -10°C ~ 50°C. Weighing at only NextSPOT 600 is both portable and reliable, especially for conducting field testing.
Long Battery Life - ARM Technology
NextSPOT 600, which know for enery efficient, and along with a fanless design, a fully charged unit can perform 12 hours of normal operation (1 battery), and requires only 3 hours for a complete recharge. 2 batteries will bring it close to 24 hours.
Exceptional Visual Interface - 11.6 inches Full Touch Screen with XGA Wide-angle View
Testing in the field are often conducted in harsh environments where visibility may be poor and requires having to wear gloves. The NextSpot 600’s 11.6 inch full touchscreen with XGA wide-angle viewing help address these common issues all while giving you the most accurate visual results and feedback.
Accurate Measurement - 64 Channels, 1MHz-25MHz Bandwidth, 400 Mhz/12 bits DSP
By adopting a parallel 64 channel design, 1MHz-25 MHz analog bandwidth, and 12 bits DSP, it gives NextSpot 600 the most accurate measurement of welding nuggets and indentations. Furthermore, the results are all visual and can be immediately determined whether the results are passed or failed.
Real-time Imaging and Other Testing Methods
NextSpot 600 can provide A/C - scan and real-time display on spot weld. NextSpot 600 can support single element probe testing, PA imaging testing as well as various nonultrasonic methods, data capture, chisel inspection, visual inspection, and many more.
Powerful, Flexible, yet Easy-To-Use Software
At the heart of the device is our NextSoft Analyser user interface that we build from the ground up. Built on top of the Linux OS platform, it provides a safe, reliable and stable platform for our software system. Boasting a 10 seconds startup time, it can be quickly and easily setup to perform real-time image scanning on spot welds.
Fast & Accurate
Applications
Joint Structures
2-Layers, 3-Layers, and 4-layers (Non-Glue/Glue Bonded)
Plate Thickness Calibration
0.5mm ~ 4.0mm
Material Coverage
Mild steel, Cold Pressed High Strength Steel, Hot Stamped Ultra High Strength Steel, Aluminum Alloys, Stainless Steel, and Titanium
Surface Processing
Bare Metal, Al-Coating, Zinc Coating, Electrophoretic Coating, and Paint Coating
NextSoft Studio
NextSoft Studio Admin
Each NextSpot 600 comes with the standard version of the our NextSoft Analyser System, which works well as an independent stand-alone spot weld inspector. But often NDT inspections require to function as a group or a team that is supervised by management. The NextSoft Studio Admin (software) provides this function.
The admin version can upload any testing required
part images into the system. The system can then create
visual labels on exactly where and what to test, and
also setup the testing sequences. All inspection points’
results will then be individually captured and logged into
a database for further statistical evaluation.
NextSoft Studio Cloud - (Optional)
Our NextSoft Studio Cloud is a cloud data managment tool that can synchronize data among multiple units of NextSpot 600 devices via the cloud to a single repository location.
In order to manage a full team of inspectors in a production line and/or in a field environment that meet strict quality NDT management requirements, all data captured by each NextSpot 600 unit can be individually upload data to a cloud based data repository along with information such as inspection plans, test location, test settings, and etc.
Once the data are in the cloud repository, they can be downloaded into a remote management system off-site for further analysis.
Chekc it out
