T h e N e x t - G e n PA UT TFM / FMC S c a n n e r
NextSCAN Series

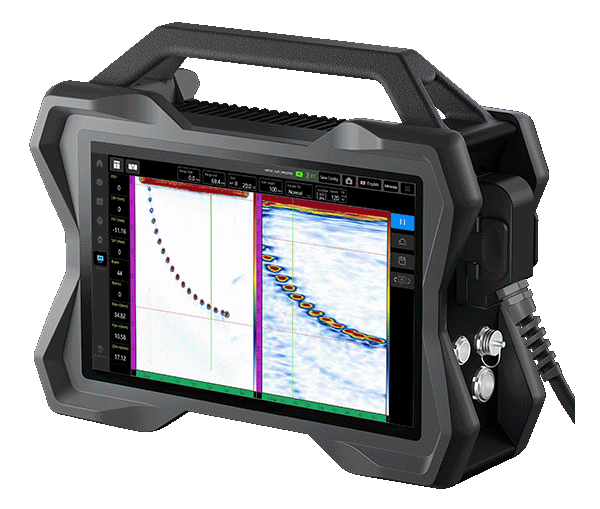

Introduction
NextSCAN is the most versatile NEXT generation high – performance PAUT with Total Focusing Method (TFM) and Full Matrix Capture (FMC) Analyzer.
NextSCAN encompasses a full spectrum of UT features from conventional UT to single-beam and multi-group phased-array UT with 3-encoded axis capabilities in an ultra-compact, portable, yet rugged field device. Below are some highlights:
- Total Focusing Method (TFM) – Real-Time High Resolution
- Full Matrix Capture (FMC) – Up to 128 Elements
- 64 Channel Code-Compliant Phased Array Ultrasound (PAUT)

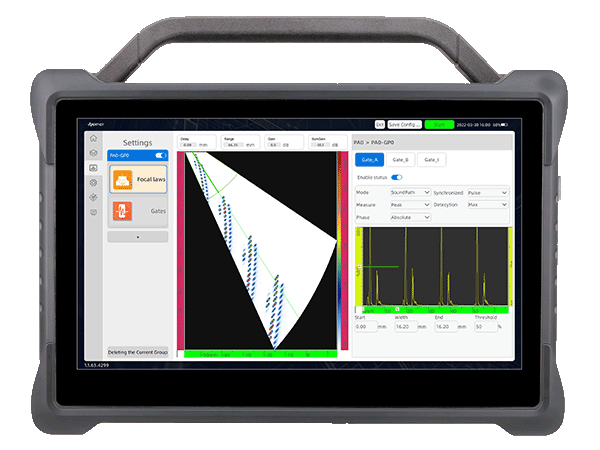

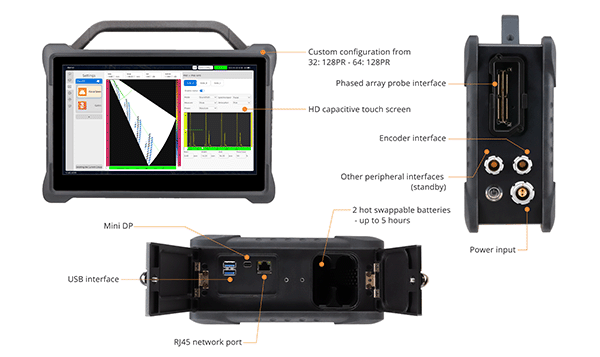

With a 12 inches brightly lit resistive touch screen that is suitable even for outdoor, it is powered by 2 hot-swappable batteries that can reach up to 5 hours of usage.
Key Features
Highlights
Fully embedded PAUT software for all techniques -
from application design to inspection and reporting
Streamlined intuitive user interface limiting training time and reducing operator errors
Complete probe and scanner databased embedded
Fast and easy setup with direct single-click wizards
Solutions
Complete toolbox for TFM including TCG calibration
Ultra-high imaging TFM imaging up to 128 elements
3-axis nozzle inspection with live overlay display
3-axis paintbrush for composite and corrosion mapping
Real-time Adaptive TFM (ATFM) for inspection of wavy
surfaces
Fast & Accurate
Applications
Multi-group weld inspection procedures fully covered
HTHA and hydrogen damages inspection with TFM
Thick welds and CRA/stainless steel weld inspection enhanced with 128-element aperture

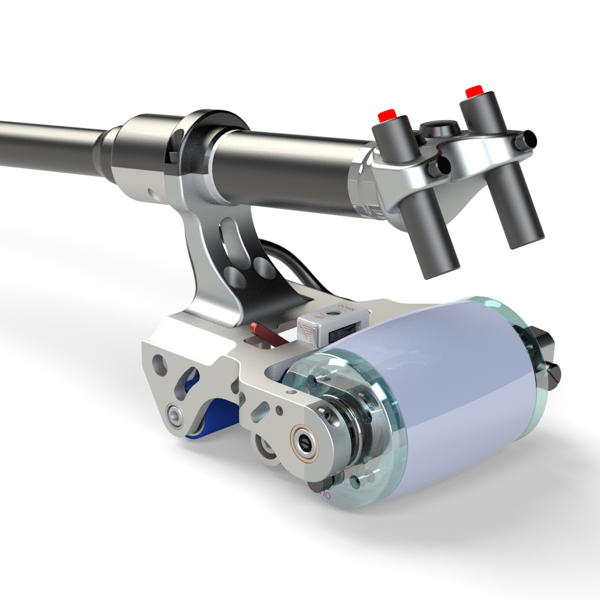

Corrosion mapping of large areas
Up to 5 x 5 m/ 1 mm step
Complex geometry dedicated solution for nozzle and fillet welds (Y and T joints)

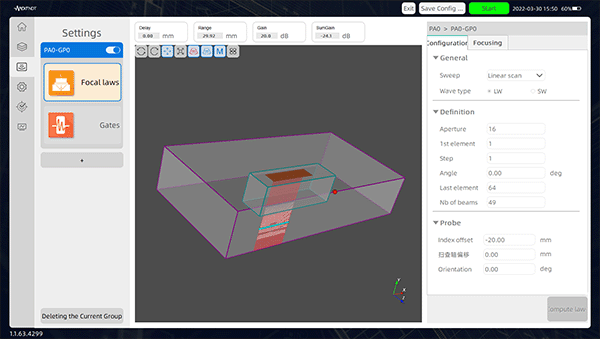

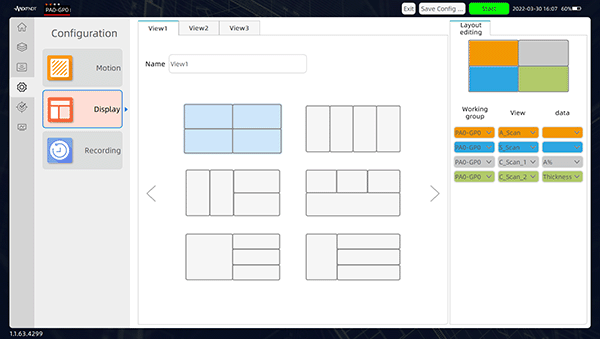

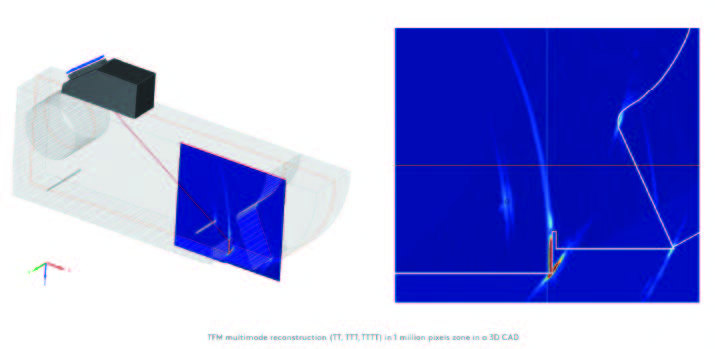

NextSOFT Studio - TFM/FMC

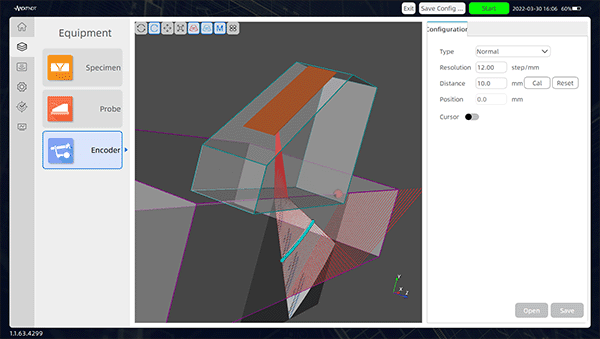

NextSOFT Studio

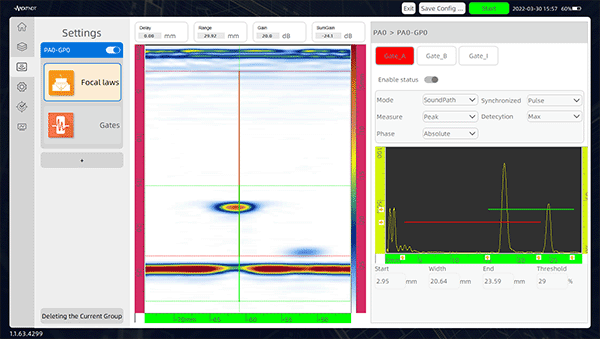

NextSCAN includes NextSOFT, our time-tested, powerful, yet easy-to-use software. NextSOFT has many advanced features and functions to assist in capturing all your Parallel PA & TFM UT signals. Most importantly, NextSOFT delivers to you the highest real-time 3D imaging and resolution the industry has to offer with many options via A, C, and S scans.
Probe/Sensor Is What Sets Us Apart

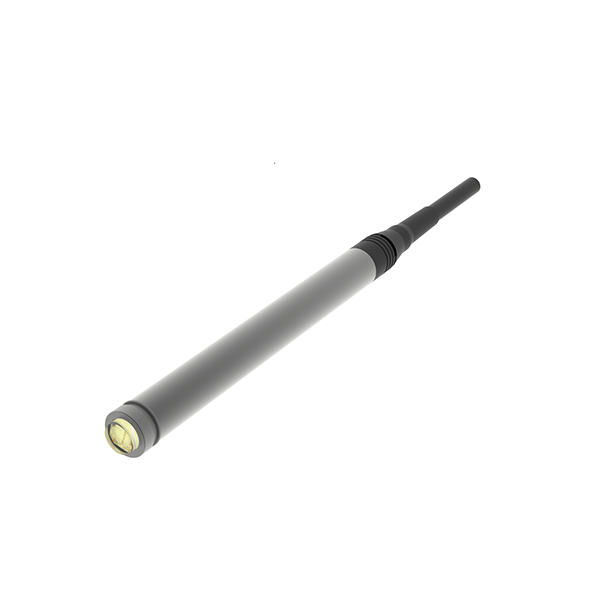

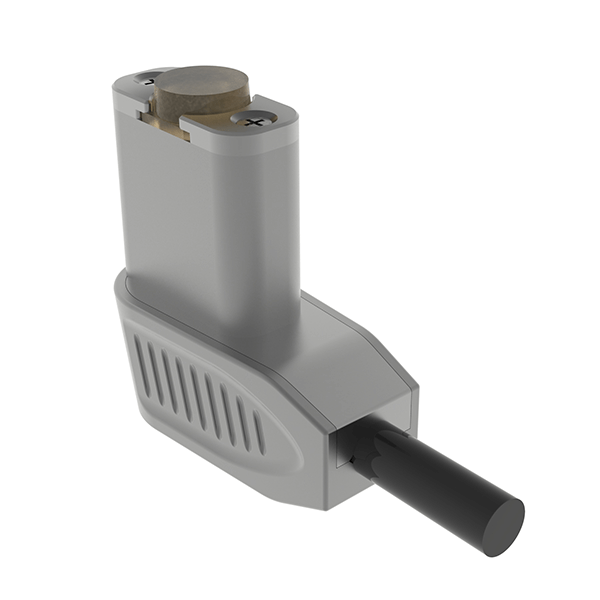

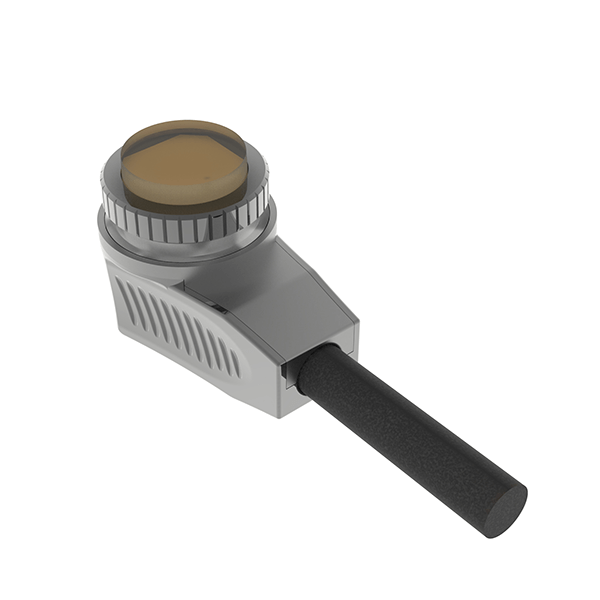

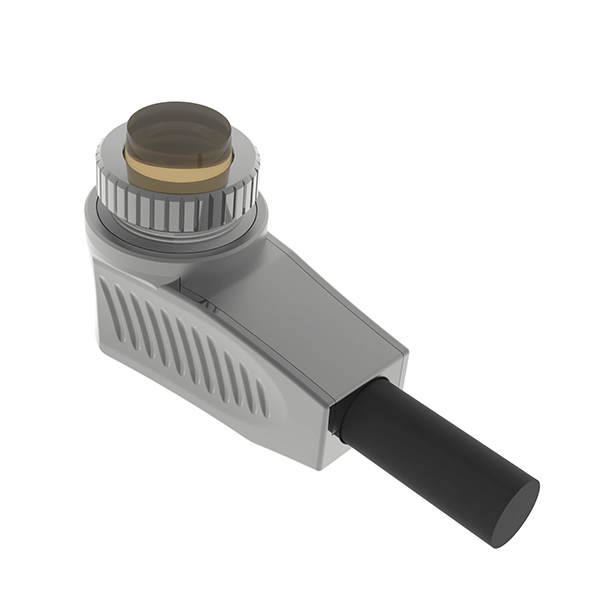

NextPROBE

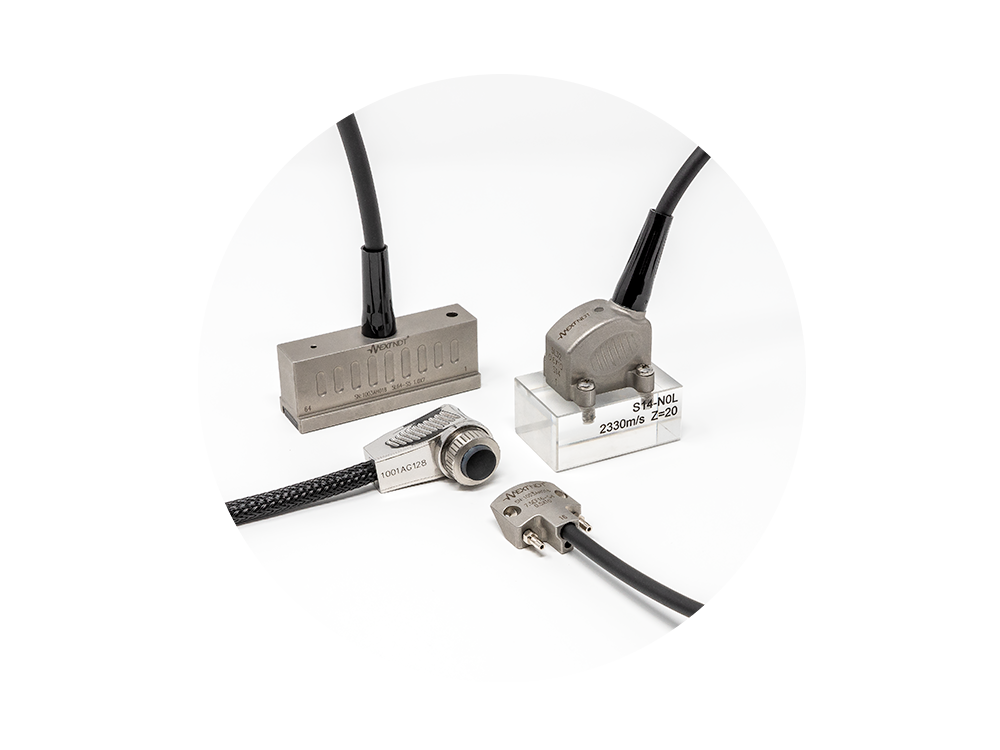

NextNDT is the probe and sensor manufacturer with a dedicated team of hardware and software experts standing behind every purchase.
Isn't it nice to know that the engineers that build and design
NextSCAN's circuit boards and software work side-by-side with
the engineers that build the probes - the eye of the system?
With ever-growing complex NDT issues in the industry today,
NextNDT, with all in-house engineers, can help customize a
tailor-made solution specifically for you, everything from the
hardware, software, and sensors. At NextNDT, we can build it
faster, better, and more economical than our competitors, we
guarantee it.
